Inverto TV Professional MPEG4/H.264 (AVC) HD Encoder and Transcoder

Inverto TV Professional MPEG4/H.264 (AVC) HD Encoder and Transcoder

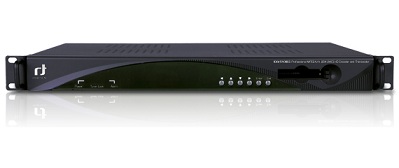

Inverto TV IDLV-5100EC is a high quality single program high definition MPEG4/H.264 (AVC) encoder/trans-coder. It has a wide range of digital/analog base band video and audio inputs which include CVBS, HD-SDI, HDMI, YPbPr and stereo audio.

The IDLV-5100EC can receive and encode an SD or HD TV into a Transport Stream (TS) with MPEG4/H.264 compression or trans-code an MPEG-2 TS into MPEG-4/H.264 (AVC) TS. In trans-coding mode, the digital audios are looped through and time stamping is automatically implemented to ensure the synchronization between video and audio.

The IDLV-5100EC features a built-in Time Base Correction (TBC) functional block that ensures the stability of encoding process from audio and video intermittence.

The IDLV-5100EC incorporates an internal re-multiplexing function that allows constructing a new TS formed with the TS internally encoded and the TS from ASI or IP input. The multiplexed TS can be multiple SPTS or MPTS over IP, as well as over ASI. This professional cost-optimized encoder/trans-coder with built-in re-multiplexer architecture makes the IDLV-5100EC a unique competitive solution helping network operators, broadcasters and service providers to address the MPEG2 to MPEG4/H.264 migration requirement in today's digital TV broadcast arena.

Video Compression
Video Resolution	1080i (1920/1440×1080) @25Hz, 29.97Hz, 30Hz: SMPTE 292M
	720p (1280×720) @50Hz, 59.94Hz, 60Hz: SMPTE 292M
	480i (720×480) @29.97Hz: SMPTE 259M
	576i (720×576) @25Hz: SMPTE 259M
Compression Standard	H.264 (AVC), High Profile Level 4.0
Aspect Ratio	4:3 / 16:9 selectable
Chrominance Sampling	4:2:0 8bits
Video Encoding Bit Rate	2Mb/s-20Mb/s
Recommend Video Encoding Bit Rate	1920x1080i /25/29.97/30fps: 6~20Mb/s
	1440x1080i /25/29.97/30fps: 5~20Mb/s
	1280x720p /50/59.94/60fps: 4~20Mb/s
	720x480i /29.97fps: 2~10Mb/s
	720x576i /25fps: 2~10Mb/s
Audio Compression
Audio Input	Embedded Audio from HDMI or SDI, Analog audio
Compression Standard	MPEG-1 Layer II
Audio Mode	Stereo, Joint Stereo, Dual Mono, Mono
Audio Sampling Rate	48KHz
Audio Compression Bit Rate	32 ~ 384Kb/s
Audio/Video Input
Analog Audio	1×D-sub 9 Female male connectors with XLR balance (L/R) adaptor cables as standard accessory
Analog CVBS	1×BNC Female, 75Ω
SD-SDI	1×BNC Female, 75Ω
YPbPr	3×BNC Female, 75Ω
HDMI	1×HDMI 1.3 standard type
ASI Input
Connector Type	1×BNC Female, 75Ω
Input Bit Rate	≤ 100Mb/s
Packet Mode	Byte
Packet Length	188/204 Bytes
TS Processing
TS Input Management	Remux and demux between ASI input and the SPTS encoded
TS Output Management	Remux and demux for mirrored ASI outputs
Service and PID management	Filtering and remapping
PSI/SI	PSI/SI table regeneration, NIT and SDT edition
TS over IP
Connector Type	1×RJ-45, 10/100 Base-T
Useful Bit Rate	70Mb/s
Protocol	UDP, RTP/UDP, Multicast, Unicast, IGMPv2, ARP
Source	Any one from Built-in Re-mux, ASI input & Encoder output
ASI Output
Connector Type	2×BNC Female, 75Ω
Output Bit Rate	≤ 99Mb/s
Packet Length	188 / 204 Bytes
Signal Level	800mVpp±10%
Source	Any one from Built-in Re-mux, ASI input & Encoder output
Control & Monitoring
Connector Type	1×RJ-45, 10/100 Base-T
Remote Control	SNMP, HTTP Web interface, HDMS - a proprietary PC software tool
Local Control	LCD display and 6-key keypad
Software Upgrade	Built-in FTP loader and Telnet
Physical
Dimension	44mm×483mm×340mm
Net weight	3.2Kg
Power supply	AC90 ~ 250V, 50Hz/60Hz
Power Consumption	Maximum 20W
Operating Temperature	0 ~ 45℃
Storage Temperature	-10 ~ 60℃
Humidity	10 ~ 90%, non-condensed

transcoder
transcoder
encoder
encoder
satelitski risiveri
satelitski risiveri

Pace DC840, HD STB, Conax

PACE DC840, HD STB, is a digital, high resolution decoder intended for the cable market with a built in Conax conditional access card reader. DC840 OH decodes both streams MPEG2 and MPEG4 while maintaining high standards of video and audio signals. The device has an intuitive menu system and attractive graphics, high-resolution screen that simplifies configuration and hardware support (advanced middleware Pace). The device is characterized by extremely low power consumption in Standby mode (< 1W), additionally has a function for setting the time after which it will automatically turn off when not in use. Electronic Program Guide (EPG) can be displayed in 30 different languages, showing information about the available programs for the next 7 days. The decoder has a very fast switching time between the sites (about 3 seconds) and the short time needed to boot after a power outage (approximately 30 seconds). It is very easy to install and configure.

Features:

• HDMI ver. 1.3 with HDCP
• Internal memory 256 MB SDRAM and 128 MB NAND Flash
• Meet the highest standards of content security (Conax Level 3)
• Supports MPEG4 and MPEG2
• Optical Dolby Digital AC3 audio
• Support for 7-day EPG
• HDMI, SCART, composite video, S / PDIF (optical)

Set Top Box

Set Top Box

digitalna stanica

Cisco EPC 3010 kablovski modem

Features:

EuroDOCSIS

• Eight (8) bonded downstream channels with data rates in excess of 440 Mbps
• Four (4) bonded upstream channels with data rates in excess of 120 Mbps
• Compliant with EuroDOCSIS 3.0, 2.0, 1.1, and 1.0 standards to deliver high-end
• performance and reliability

Connections

• Bridged 1000/100/10 Mbps Ethernet port with Auto-negotiate and Auto-MDIX and USB 2.0 data port
• Support for up to 64 users (1 USB port user and up to 63 users on user-supplied Ethernet hubs)

Design and Function

• DOCSIS-5 compliant LED labeling and behavior provides a user- and technician-friendly method to check operational status and act as a troubleshooting tool
• TR-068 compliant color-coded interface ports and corresponding cables simplify installation and setup
• Updated GUI with intuitive "Cisco Consumer Guidelines" webpage design
• Dual-color LED provides an informative and easy-to-understand display to indicate operational status, including channel bonded and non-channel bonded operation, CPE data link rates, and real-time data transmission activity ● Attractive, compact design and versatile orientation to stand vertically, lie flat on the desktop or shelf, or mount easily on a wall
• Rugged electronic components for long-term reliability

Management

• Allows automatic software upgradeable by network download
• Remote manageability using SNMP V1/V2 and V3

kablovski modemi

kablovski modemi

cable modem

cable modem

CMTS

Cisco EPC 3008 kablovski modem

Cisco EPC 3008 kablovski modem

EuroDOCSIS

• Eight (8) bonded downstream channels with data rates in excess of 440 Mbps
• Four (4) bonded upstream channels with data rates in excess of 120 Mbps
• Designed to meet EuroDOCSIS 3.0 specifications as well as backward compatibility with existing EuroDOCSIS 2.0, 1.1 and 1.0 networks
• EuroDOCSIS compliant support for IPv6/IPv4
• Expanded tuning range, 108-1002 MHz

Embedded Digital Voice Adapter

• Two-line embedded digital voice adapter for wired telephony service
• Toll-quality, high-compression, and high-fidelity (exceeding toll quality) CODEC options

Connections

• 10/100/1000 Mbps Ethernet port with Auto-negotiate and Auto-MDIX
• Support for up to 64 users

Management

• Software upgradeable by network download
• Remote manageability using SNMP V1/V2 and V3
• Software and Documentation
• CD-ROM containing user guides

kablovski modemi

kablovski modemi

cable modem

cable modem

CMTS

Inverto IDLV-5100P Professional Multi-format SD/HD Integrated Receiver Decoder

Inverto IDLV-5100P Professional Multi-format SD/HD Integrated Receiver Decoder

Inverto IDLV-5100P is the latest generation of Inverto's professional HDTV IRDs (receivers with integrated decoder). This device offers you a rich set of interfaces and capabilities. It supports AC-3 channels pass-through over SDI, AES-EBU and one AC3 channel pass-through or down-mixed PCM audio over HDMI. Moreover, IDLV-5100P supports 32K, 44.1K and 48K audio sampling rate. It complies with MPEG-4 (AVC high profile level 4.1) and MPEG-2 (MP@ML & MP@HL) standards. The IDLV-5100P supports various tuners and interfaces for receiving DVB-T2*, DVB-S2/S, DVB-C, DVB-T, TS-over-IP, and ASI input. As the receiver is equipped with two CI slots, you can receive programs of diffrent pay TV suppliers with the respective professional CAM modules. A descrambled stream is delivered directly to the ASI output ports, to the built-in re-multiplexer and to the IP output port. At the same time the decoded video is routed via HDMI output, via SDI with embedded audio, via YPbPr component interface and via CVBS. The built-in re-multiplexer receives transport streams from the tuner, one of the two ASI inputs, or input, and the descrambled stream from the CI slot. Through individiual structure of the PSI/SI tables you can configure the output stream the way you want. Moreover, there´s full support of: PCR re-mapping, re-use the original NIT or generating a new NIT, modifications of TS parameters such as TSID, Network ID, and ONID. You can monitor and control the IRD via its web-based interface, HDMS (SNMP based network management software) or over the front panel.

Main features:

• Factory optional for DVB-T2, DVB-S2/S, DVB-C, DVB-T Reception
• MPEG-2(MP@ ML& MP@HL) and MPEG 4 Part 10 (AVC high profile level 4.1)
• Wide choice of I/O Interfaces including ASI Input/Output, CVBS Output, YPbPr Output, HDMI Output, SD/HD-SDI Output (embedded with up to 2 Audio Stereo Pairs), AES/EBU Output, 10/100M or 1Gbps TS over IP Input/Output (optional), DS3 Interface (optional)
• Built-in Re-Multiplexer
• BISS 1 or BISS E Decryption
• Dynamic PMT Detection and Automatic Update
• VBI TELETEXT, EBU/ DVB SUBTITLE Support
• WSS Support • Closed Caption Support
• 10/100M Ethernet TSoIP I/O, supporting Gigabit Ethernet Daughter Board
• UDP and RTP for TS over IP I/O
• DVB and IPTV Mode IP Output
• Unicast and Multicast Support
• Remote Control, Management and Monitoring over Web-based Interface, HDMC Software and SNMP
Protocols
• Two DVB-CI Slots

DVB-S2 Demodulation
Input Frequency Range	950～2150MHz
Input Level	- 25 ~ - 65 dBm
Input Impedance	75 Ω
Connector	F-Female
Symbol Rate	2 ~ 45 MBaud/s for QPSK, 2 ~ 45 MBaud/s for 8PSK
Roll Off Factor	0.35 for QPSK
	0.35，0.25，0.2 for DVB-S2
Punctured Rates	DVB-S QPSK：1/2，3/5，2/3，3/4，4/5，5/6，8/9，8/10 DVB-S2 8PSK：3/5，2/3，3/4，5/6，8/9，9/10
LNB Power	13 V, 18 V or Off, 22 KHz On/Off
DiSEqC	DiSEqC 1.0
DVB-C QAM Demodulation
Tuner Input Symbol Rate	1~ 7 MBaud（ITU J.83 Annex A）
Demodulation	16/32/64/128/256QAM
Bandwidth	6 MHz or 7 MHz or 8 MHz
Input Frequency	48 ~ 860 MHz
Input Level	45 ~ 75 dBuV
Input Impedance	75 Ω, F-Female
Input Return Loss	7 dB (typ.)
DVB-T COFDM Demodulation
Demodulation	QPSK，16-QAM，64-QAM
Bandwidth	6 MHz/7 MHz/8 MHz
FFT mode	2 K/8 K (auto recognized with TPS)
Guard Interval	¼，1/8，1/16，1/32，off (auto recognized with TPS)
FEC code rate	½，2/3，3/4，5/6，7/8 (auto recognized with TPS)
Input Frequency	174 ~ 230 MHz (VHF)
	470 ~ 862 MHz (UHF)
Input Level	- 20 ~ - 70 dBm (Quasi Error Free, QEF)
Input Impedance	75 Ω, F-Female,
Input Return Loss	7 dB (typ.)
DVB-T2 COFDM Demodulation
Demodulation	QPSK, 16QAM, 64QAM, 256QAM
Bandwidth	6 MHz/7 MHz/8 MHz
FFT mode	1 K, 2 K, 4 K, 8 K, 16 K, 32 K (auto recognized with TPS)
Guard Interval	1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 (auto recognized with TPS)
FEC code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6 (auto recognized with TPS)
Input Frequency	174 ~ 230 MHz (VHF)
	470 ~ 862 MHz (UHF)
Input Level	- 20 ~  - 70 dBm (Quasi Error Free, QEF)
Input Connector	F-Female with BNC Adaptor
Input Impedance	75 Ω
Input Return Loss	8 dB (typ.)
MPEG TS over IP I/O
Ethernet Connector	RJ45, 10/100M or 100/1000M, for TS over IP (optional)
Max. Bit Rate	70 Mbits/s
Protocol	UDP / RTP, Multicast / Unicast, IGMPv2, ARP
Common Interface
Connector Type	Double-deck PCMCIA, compatible with 3.3V or 5V CAMs
Input interface
Front End Tuner IN	1x Input, 1x Loop Through Output
ASI IN	2× 75 Ω, BNC Female
Output interface
ASI OUT	2×2 75 Ω, BNC Female, 2 redundant pairs
SDI/HD-SDI OUT	2×   75 Ω, BNC Female, SDI/HD-SDI, identical for backup
	SDI (SD): SMPTE 259M, Embedded Audio - SMPTE272M
	HD-SDI: SMPTE 292M, Embedded Audio - SMPTE299M
HDMI	1x HDMI 1.3 Interface
YPbPr	1x Set of 3× 75 Ω RCA
CVBS	1× RCA , 1× 75 Ω BNC
AES/EBU	2× 9-pins D-sub connectors, AES/EBU and XRL Adaptors, 110 Ω (balanced)
Analog Audio	2×2 RCA, two Sets of independent Audio Outputs, 600 Ω (balanced), configurable as Stereo, Dual Mono, Single Left, Single Right
Serial Port	1×RS-232 9-pin D-sub, debug only
Ethernet Connector	1×RJ45, 10/100M, for Network Management
	1×RJ45, 10/100M or 100/1000M, for TS over IP (optional)
Audio / Video Decoding
Video Decompression Type	HP@L4, MP@ L3, MP@ML (H.264Part 10)
Audio Decompression Type	Mpeg-1 Layer II Audio, (Stereo/Musicam i.e. Single and Mono Stereo and Joint Stereo), Digital AAC (HE v1 and v2, LE MODE) Decoding, DolbyAC-3 Pass Through
Output Video Formats
SDI	1080i 30, 1080i 29.97, 1080i 25, 720p 60,
	720p 59.94, 720p 50, 576i 25, 480i 29.97,
HDMI	1080i 30, 1080i 29.97, 1080i 25, 720p 60, 720p 59.94,
	720p 50, 480p 60, 576p 50, 576i 25, 480i 29.97
YPbPr	1080i 30, 1080i 29.97, 1080i 25, 720p 60, 720p 59.94,
	720p 50, 480p 60, 576p 50, 576i 25, 480i 29.97
CVBS Port	NTSC, PAL and SECAM
Management
Ethernet Connector	RJ45，10/100M, for NMS and Software Upgrade
Protocol	SNMP, TCP/IP, HTTP
Front Panel Control	LCD Display and 6-key Keypad
General
Power Supply	90 ~ 260 V AC，50/60 Hz
Power Consumption	24 W
Operating Temperature	0 ~ + 45°C
Storage Temperature	- 10 ~  + 50 °C
Operating Humidity	20 ~ 90%, non-condensing
Dimensions	44 mm × 483 mm × 255 mm
Approx. Weight	5 kg
